Socket weld flanges have a socket in which a pipe is inserted; the pipe is secured by one fillet weld located on the exterior of the flange hub. A significant disadvantage with this type of flange is that it is not considered a high-integrity joint because the weld is difficult to prove; thus socket weld flanges are only suitable for low to medium classes (≤ ASME 600). Due to their lower integrity and unsuitability for use at higher pressures, socket weld flanges almost always have flat or raised faces.

Socket weld flanges are designed for small nominal pipe sizes (≤ 4 inches, ≤ 10cm) and are common for ½ to 2-inch pipe sizes (1.3 to 5cm pipe sizes). The mechanical strength of a socket weld flange is similar to that of a slip-on flange, but the slip-on flange may use two welds.

The ASME B31.3 standard states that an approximate gap of 1⁄16th of an inch (1.5mm) between the socket and pipe end is required; this gap allows for thermal expansion due to welding and reduces the likelihood that the weld will crack. In practice, this means that the pipe should be fully inserted into the flange, then retracted by the desired amount (1/16th of an inch, 1.5mm); this gap has been highlighted red on the above image.

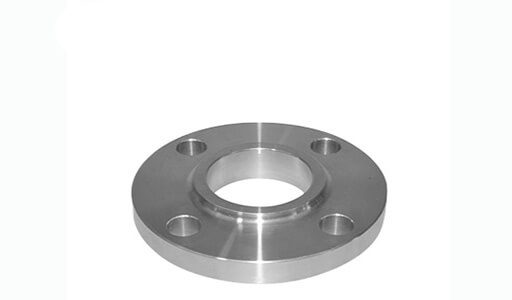

socket-weld-flanges-manufacturers-exporters-suppliers-stockists

Socket Weld Flanges Manufacturers, Socket Weld Flanges Suppliers, Socket Weld Flanges Stockists, Socket Weld Flanges Exporters

Socket Weld Flanges Manufacturers in India, Socket Weld Flanges Suppliers in India, Socket Weld Flanges Stockists in India, Socket Weld Flanges Exporters in India

If you are wanting to buy ANSI B16.5 Attachment Weld Flanges, most ideal situation, cost in India, check our expense of Hardened Steel Attachment Weld Flanges including Class 300 Attachment Weld Flanges, Attachment Weld Ring Joint Flanges and 3 Inch Attachment Weld Flanges. Association Weld Fashioned Flanges to UK, USA, Sweden, Israel, France, Italy, Canada, UAE, Australia, Germany, Russia, Oman, Kuwait, Qatar, Iran, Turkey, Egypt, Bahrain, Indonesia, Malaysia, Singapore, Thailand, Sri Lanka and Saudi Arabia.

We can in actuality Stainlees Steel Attachment Weld Flanges, most ideal situation, cost as we are maybe the most mind boggling supplier and dealer of Alloy Steel Attachment Weld Flanges in Indium. We have our stocking dealers in Delhi, Bangalore, Surat, (Gujarat), Hyderabad, Pune (Maharashtra) and Chennai in Tamil Nadu. Check once our Nickel Combination 2500 Lb Attachment Weld Flanges cost going prior to buying Carbon Steel Attachment Weld Flanges from India or China. other than mail for our live deftly of Mss Sp-44 Attachment Weld Line Flanges to check types and sizes with our set up stock we can give you best expense of Inconel Attachment Weld Lessening Flanges.

We can other than give free delineation of Hastelloy Attachment Weld Sae Flange,Niton Metal & Alloys is having our Seller and Merchant in Bangalore, Karnataka, Chennai (Madras), Tamil Nadu, Ahmedabad, Gujarat, Delhi, Pune, Maharashtra, Rajkot, Ghaziabad, Uttar Pradesh, Bhosari, Ludhiana, Punjab, Vadodara, Aurangabad, Faridabad, Gurgaon, Haryana, Indore, Madhya Pradesh, Jaipur, Rajasthan, Kolkata, West-Bengal, Khopoli, Karnataka, Kolhapur, Nagpur, Raipur, Chhattisgarh.. So if you are looking for best expense of Attachment Line Weld Neck Flanges or Copper Nickel Swrf Flanges, Carbon Steel Attachment Weld Flanges near you with most short period of time progress or free outline of Rtj Attachment Weld Flanges.

Socket Weld Flanges Manufacturers in Mumbai, Socket Weld Flanges Suppliers in Mumbai, Socket Weld Flanges Stockists in Mumbai, Socket Weld Flanges Exporters in Mumbai

ASME B16.5 Socket Weld Flange Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Socket Weld Pipe Flange Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Socket Weld Reducing Flange Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Socket Weld Rtj Flange
SWRF Flanges Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Socket Weld Reducing Flange
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K SWRF Flanges
UNI 6Bar 10Bar 16Bar 25Bar 40Bar Socket Weld Pipe Flange
EN 6Bar 10Bar 16Bar 25Bar 40Bar Socket Weld Sae Flange
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most common types of Socket Weld Hub Flange Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations

Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin Indian / West Europe / Japan / USA / Korean
Manufacturer of

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
Socket Weld Reducing Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • B.S: BS4504 , BS3293, BS1560, BS10
  • AS 2129: Table D; Table E; Table H
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • American standard (ANSI)
  • German (DIN)
  • British standard (BS)
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Socket Weld Sae Flange
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Socket Weld Pipe Flange Uses & application
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Export to Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
ASME B16.5 Socket Weld Flange Dimension

150 lb socket weld flange dimensions

Drilling
Nominal Bore Socket Weld Dia.(D) Thick.(E) Dia.(F) Dia.(B) Dia.(A) Height1(H) Nbr Holes Dia.(C)
1/2″
90
11.2
35.05
30
22.2
14
4
15.87
60.3
3/4″
100
12.7
42.92
38
27.7
14
4
15.87
69.9
1″
110
14.3
50.80
49
34.5
16
4
15.87
79.4
1 1/4″
115
15.9
63.50
59
43.2
19
4
15.87
88.9
1 1/2″
125
17.5
73.15
65
49.5
21
4
15.87
98.4
2″
150
19.1
91.94
78
61.9
24
4
19.05
120.7
2 1/2″
180
22.3
104.65
90
74.6
27
4
19.05
139.7
3″
190
23.9
127.00
108
90.7
29
4
19.05
152.4

300 lb socket weld flange dimensions

Drilling
Nominal Bore Socket Weld Dia.(D) Thick.(E) Dia.(F) Dia.(B) Dia.(A) Height1(H) Nbr Holes Dia.(C)
1/2″
90
11.2
35.05
30
22.2
14
4
15.87
60.3
3/4″
100
12.7
42.92
38
27.7
14
4
15.87
69.9
1″
110
14.3
50.80
49
34.5
16
4
15.87
79.4
1 1/4″
115
15.9
63.50
59
43.2
19
4
15.87
88.9
1 1/2″
125
17.5
73.15
65
49.5
21
4
15.87
98.4
2″
150
19.1
91.94
78
61.9
24
4
19.05
120.7
2 1/2″
180
22.3
104.65
90
74.6
27
4
19.05
139.7
3″
190
23.9
127.00
108
90.7
29
4
19.05
152.4

600# socket weld flange dimensions

Drilling
Nominal Bore Socket Weld >Dia.(D) Thick.(E) Dia.(F) Dia.(B) Dia.(A) Height1(H) Nbr Holes Dia.(C)
1/2″
95
14.3
35.05
38
22.2
22
4
15.87
66.7
3/4″
115
15.9
42.92
48
27.7
25
4
19.05
82.6
1″
125
17.5
50.80
54
34.5
27
4
19.05
88.9
1 1/4″
135
20.7
63.50
64
43.2
29
4
19.05
98.4
1 1/2″
155
22.3
73.15
70
49.5
32
4
22.22
114.3
2″
165
25.4
91.94
84
61.9
37
8
19.05
127.0
2 1/2″
190
28.6
104.65
100
74.6
41
8
22.22
149.2
3″
210
31.8
127.00
117
90.7
46
8
22.22
168.3
